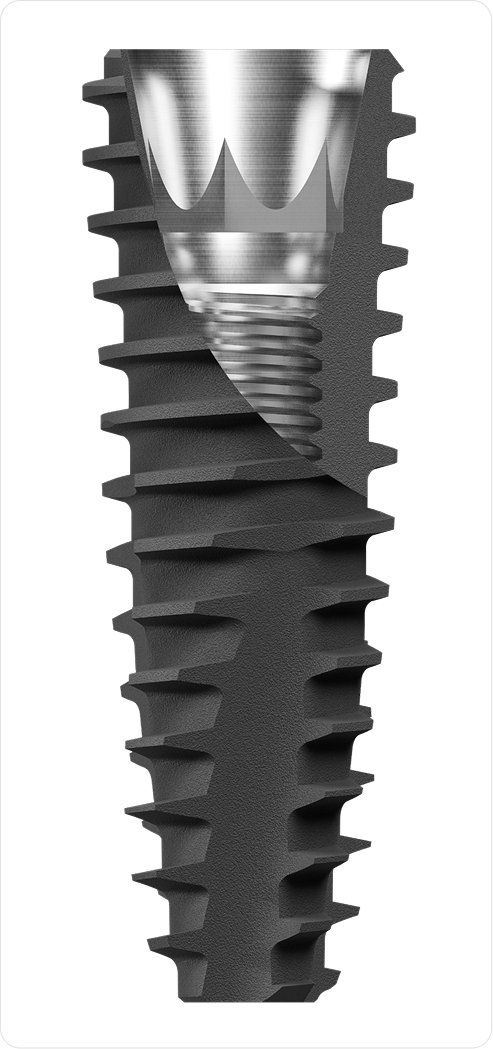

Internal Hex Connection’s Submerged Implant System
The fully tapered design provides excellent insertion stability and feel.
Provides stable fixation, even in soft bone and maxillary sinus cases.
Its longer, sharpened cutting edge facilitates self-tapping, even in under-drilled osteotomies.
The thread pitch spacing and depth are designed to maximize the BIC effect.
Enhanced Initial Stability with Specialized Design for Soft Bone
Enhanced stability through overall tapered shape and larger cutting edge design optimized for soft bone conditions.
Maxillary sinus lift, immediate extraction and placement, edentulism, and challenging bone quality scenarios.
Reduced drilling steps up to 4 stages in soft bone. Easy self-tapping even during under-drilling procedures.
The upper part features a fine roughness to prevent peri-implantitis, while the body and apex areas employ the most suitable surface roughness for osseointegration.
Hex 1.7
Hex 2.5

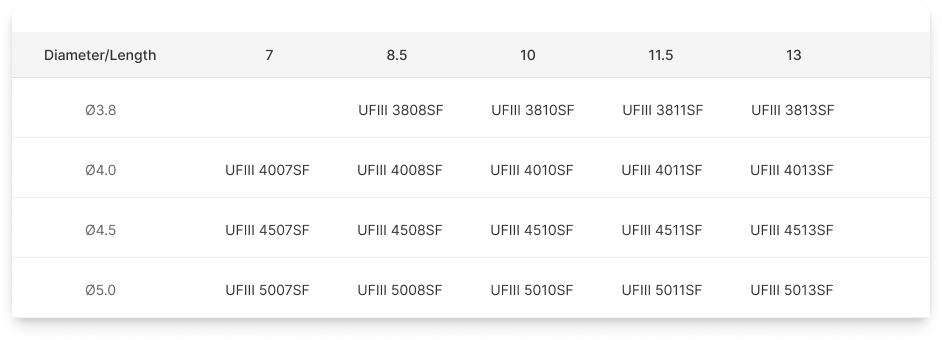

Size Chart
Size Chart
A dedicated DIO NAVI kit for UFII/UFIII fixtures (Ø3.8–Ø5.0), designed for guided implant procedures. Based on a standard 9.0 mm offset with Guide Sleeve: GS 53BL.
